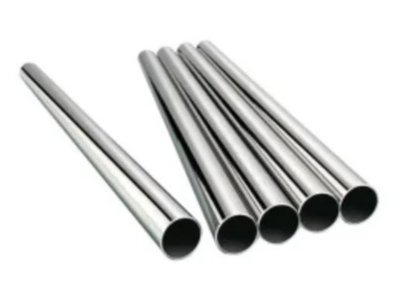

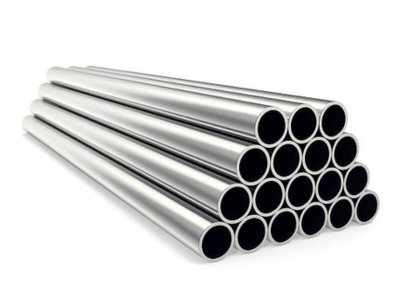

Comprehensive Guide to Stainless Steel Pipe
Repute Steel & Engineering Companyspecializes in providing high-quality pipe fittings designed to connect different components within a piping system. These fittings are available in various materials, including Stainless Steel (SS) Fittings, which are known for enhancing the efficiency of pipes and directing the flow of gases and fluids. Our ASTM A403 Stainless Steel Fittings are made from a durable alloy of chromium and steel, making them highly resistant to corrosion. As a leading Stainless Steel Pipe Fittings Manufacturer in India, we supply fittings for a wide range of applications in domestic, commercial, and industrial sectors.
Our precisely machined SS Seamless Fittings ensure accurate dimensions, providing leak-proof joints and tight seals. Additionally, our High-Pressure Stainless Steel Buttweld Fittings are ideal for use in sanitary ware and hospital settings due to their corrosion-resistant properties. The Industrial MSS SP-43 Fittings we offer have a smooth surface, allowing for the uninterrupted flow of gases and fluids. With Stainless Steel Welded Fittings, the strength allows for reduced wall thickness, lowering the overall weight while maintaining durability. Furthermore, our SS Pipe Fittings provide a sleek, naturally polished appearance, making them an environmentally friendly option as they are not petroleum-based.
Stainless Steel Pipe Material
| Manufacturer Specifications | |
| Stainless Steel Pipe Fittings Available Grade | ASTM A403 WP304/ ASTM A403 WP304L/ ASTM A403 WP316/ ASTM A403 WP316L/ ASTM A403 WP21/ ASTM A403 WP347 |
| Standard Dimension | MSS-SP-43/ ASME/ANSI B16.9/ ASME/ANSI B16.11/ ASME B16.28 |
| Standard Of ASME B16.9 | Factory-Made Wrought Buttwelding Fitting |
| Thickness | SCH 5S,/ SCH 10S,/ SCH 40S,/ SCH 80S,/ SCH 160S,/ SCH XXS |
| Size Range | 1/2", 3/4", 1", 2", 3", 4", 5", 6", 7", 8", 9", 10" (DN6~DN100) |
| Size Of Seamless Fitting | 1/2" - 10" |
| Available Size Of Welded Fitting | 1/2" - 48" |
| Manufacturer Types Of SS Fittings | 45 Degree, 90 Degree, 180 Degree, Long Radius & Short Radius, 1D, 1.5D, 3D, 5D, Reducing, Equal, Unequal, Lateral, Straight, Barred Tee, Split Tee, Concentric Reducer, Eccentric Reducer, Square, Round, Rectangular, "U" Shape, "I" Shape, Oval End Cap |
| Methods Type | ButtWeld, Welded, Seamless |
| Pressure Class | Class 150, Class 300, Class 600 |
Stainless Steel Weight Chart
| Normal Pipe Size (NPS) For ANSI/ASME B16.9 | 10S Schedule | 40S Schedule | 80S Schedule | Buttweld 90 Degree Elbow | Buttweld 45 Degree Elbow | B16.9 Buttweld Equal Tee |
|---|---|---|---|---|---|---|
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.40 | 1.28 |
Types of Stainless Steel Pipe :
1. Stainless Steel Elbows
Elbows are fittings that allow for directional changes in piping systems, typically at 45° or 90° angles. They are available in both short and long radius types, depending on the required application.
Applications: Used in plumbing, chemical industries, and gas pipelines where directional flow is needed.
Common Materials: 304, 316 stainless steel.
2. Stainless Steel Tees
Tee fittings connect three sections of pipe, allowing for flow redirection in multiple directions. They are used to combine or split fluid flow in pipelines.
Applications: Suitable for distribution networks, industrial processes, and mixing or dividing flows in pipelines.
Common Materials: 304, 316 stainless steel.
3. Stainless Steel Reducers
Reducers are fittings that enable the connection of pipes with different diameters. They come in two types: concentric reducers (aligned on the same axis) and eccentric reducers (offset).
Applications: Used in systems where piping diameters need to be reduced, ensuring smooth transitions.
Common Materials: 304, 316 stainless steel.
4. Stainless Steel Caps
Caps are used to block off the end of a pipe, preventing the flow of liquids or gases. They are vital in terminating piping systems securely and effectively.
Applications: Commonly used in plumbing systems, storage tanks, and testing procedures to seal pipes.
Common Materials: 304, 316 stainless steel.
5. Stainless Steel Couplings
Couplings are short lengths of pipe used to connect two pipes together. They can be full or half couplings, depending on whether the connection needs to be permanent or temporary.
Applications: Useful in pipeline maintenance, repair, and extension tasks.
Common Materials: 304, 316 stainless steel.
Common Applications
- 1. Food and Beverage Industry : In the food and beverage industry, maintaining cleanliness and preventing contamination is crucial. Stainless steel fittings are widely used due to their non-porous surface, which prevents bacteria buildup.
- 2. Oil and Gas Industry : The oil and gas industry demands materials that can endure harsh environments, including exposure to corrosive chemicals and extreme temperatures. Stainless steel pipe fittings are an excellent choice for offshore drilling platforms, refineries, and pipelines.
- 3. Chemical Processing : In chemical processing plants, stainless steel fittings are used extensively to transport corrosive and hazardous chemicals safely. The corrosion resistance of stainless steel ensures that the piping system remains intact, preventing leaks and spills.
- 4. Water Treatment Plants : Stainless steel pipe fittings are commonly used in water treatment plants, as they resist corrosion caused by water and chemicals. They ensure the safe and efficient transport of water for municipal and industrial purposes.
- 5. Pharmaceuticals : Pharmaceutical manufacturing requires the highest levels of hygiene and sterility. Stainless steel fittings meet these standards, allowing for the safe transportation of sensitive ingredients and chemicals in pharmaceutical production.
